Motorized Control Valve
MCV 97
Product description:
Globe type, Top & Bottom and Skirt guided, Single / Double seated, Motorized Operated, Two-way & Three-way (Mixing & Diverting type) Control Valve.
Features:
- Globe type, Top & Bottom and Skirt guided, Single / Double seated, Motorized Operated, Two-way & Three-way (Mixing & Diverting type) Control Valve.
- One medium enters the valve body above the upper seat ring, the second below the
- lower seat ring. Percentage of each medium is controlled by varying the position of the inner valve. As the inner valve approaches a seat ring the flowing area is reduced. Mixed media flows out of the valve through a common port.
- It is also used as diverting [ by passed ] the excess flow of thermic fluid, Steam, Cooling water etc.
Application:
This model can be used in throttling or on-off services to control air water, steam, gas, oil, thermic fluid and other fluids in processes having wide flow range requirement.
Ordering / Sizing Information:
- Fluid/State
- Flow Rate
- Inlet Pressure
- Outlet Pressure
- Operating Temperature
- End Connection
- Fail Position
Technical Specifications
| Size Range | 25 mm to 500 mm |
| Pressure Rating | 150#, 300#, 600#, 900#, 1500# |
| Facing | Raise Face (R.F), Flat Face (F.F), Ring Joint (R.T.J.) |
| Body M.O.C | Carbon Steel / Alloy Steel / Stainless Steel. |
| Trims | CF8 / 8M / SS 304 / 316 |
| Characteristics | Linear / Equal% / Quick Open |
| End Connection | Flange End / Butt weld |

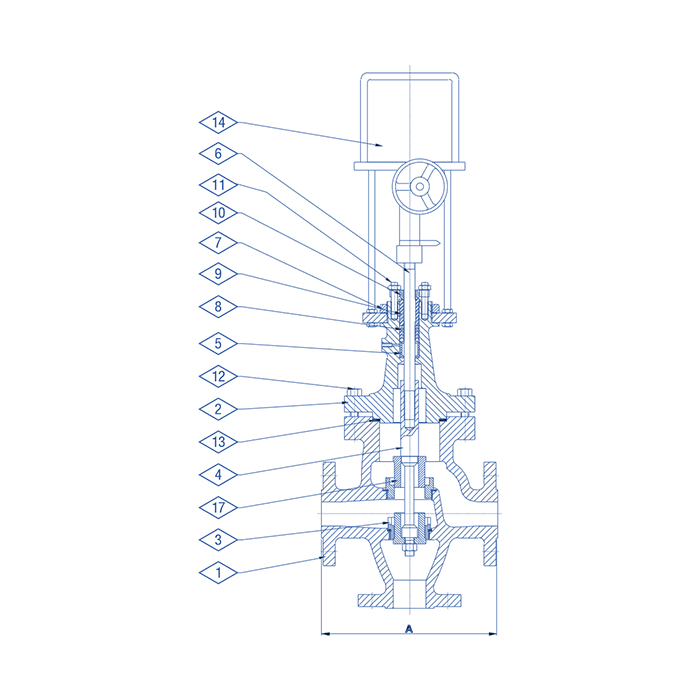

mcv 97
three way control valve
MATERIAL SPECIFICATIONS
| SR.NO. | Part Name | Material |
|---|---|---|
| 1 | Body | ASTM A 216 GR. WCB / ASTM A217 GR WC6/WC9 |
| 2 | Top Bonnet | ASTM A 216 GR. WCB / ASTM A217 GR WC6/WC9 |
| 3 | Seat Ring | SS 304/SS 316 |
| 4 | Plug | SS 304/SS 316 |
| 5 | Spring (Bonnet) | SS 302 |
| 6 | Lower Stem | SS 304 / SS 316 |
| 7 | Lock Nut | Mild Steel |
| 8 | Gland Packing | PTFE “V” Ring /Grafoil Ring |
| 9 | Follower Packing | SS 304 |
| 10 | Hold Down Plate | Mild Steel |
| 11 | Bonnet Stud & Nut | A 193 B7 / A 194 2H |
| 12 | Bolts | A 193 B7 |
| 13 | Gasket | SS 316 Spiral Wound with Graphite Filler |
| 14 | Actuator | Electrical Actuator |
| 15 | Bottom Bonnet | ASTM A 216 GR. WCB / ASTM A217 GR WC6/WC9 |
| 16 | Guide Bush | SS 410 |
| 17 | Skirt | SS 304 / SS 316 |
Dimensions (mm) 150#
| SIZE | A ±2.0 |
|---|---|
| 25 | 184 |
| 40 | 222 |
| 50 | 254 |
| 65 | 276 |
| 80 | 298 |
| 100 | 352 |
| 150 | 451 |
Dimensions (mm) 300#
| SIZE | A ±2.0 |
|---|---|
| 25 | 196 |
| 40 | 234 |
| 50 | 266 |
| 65 | 292 |
| 80 | 317 |
| 100 | 368 |
| 150 | 473 |
Dimensions (mm) 600#
| SIZE | A ±2.0 |
|---|---|
| 25 | 209 |
| 40 | 250 |
| 50 | 285 |
| 65 | 311 |
| 80 | 336 |
| 100 | 393 |
| 150 | 508 |
Dimension & Weight
Coming Soon
OPTIONAL ACCESSORIES
Coming Soon
Other Models
| MCV 77 | Top guided unbalance design |
| MCV 77 B | Cage guided balance design |
| MCV 87 | Top & Bottom guided double port design |
Standards Followed
| ASME B16.34 | Pressure Temperature Rating |
| ANSI B 16.5 | Flange Dimension |
| ASTM | Material Selection |
| ISA – S75.01 | Control Valve Sizing |
| ISA – S75.02 | Flow Capacity Test |
| ISA – S75.03/ISA – S75.15 | Face to Face Dimension |
| API 598 | Testing Standards |
| FCI 70.2 | Control Valve Leak Test |
Valve Cv Chart
| SIZE | Cv (GPM) | ||
|---|---|---|---|
| Equal% | Linear | Quick Open | |
| 25 mm | 13.9 | 16.8 | 16.3 |
| 40 mm | 30.4 | 30.2 | 30.9 |
| 50 mm | 55.2 | 55.4 | 58.7 |
| 65 mm | 77.0 | 76.0 | 82.8 |
| 80 mm | 102.0 | 118.0 | 120.0 |
| 100 mm | 170.0 | 166.0 | 155.0 |
| 150 mm | 372.0 | 377.0 | 369.0 |
