Actrol

  1. Home
  2. Our Products
  3. Automatic Control Valves
  4. The Basic Valve BTA 11

Automatic Control Valves
The Basic Valve
BTA 11

Product description:

The Automatic Control Valve, the word is self explanatory. It is a highly engineered Automatic Control Valve knowledgeably designed to operate of the line pressure or if desired, from an independent power source. Actrol valves are hydraulically operated, diaphragm actuated for multi-function control of non corrosive, non abrasive fluids.

Main Valve Design:
  • The main valve is Self Actuating Type, Pilot Operated, Globe/Angle Pattern, Top & Bottom Guided, Glandless, Hydraulically Operated, Diaphragm Actuated for multifunction control Of less viscous, non corrosive, non abbrasive fluids.
  • Our wide range Of control pilots makes it possible to Offer combination models for variety Of functions. The main valve contain only one moving part. This simplicity of design promotes dependibility, making the maintenance easier and extend the life of the valve.
  • The lower portion of main valve diaphragm assembly is a mechanical check feature, which acts independently of diaphragm position or pilot control system, and provide immediate check action when flow ceases.
Main Valve Construction:
  • The main valve consist only three major components; Body, Cover and the Top & Bottom Guided Diaphragm Assembly which is the only moving parts in the main valve making the online maintanence very easy.
  • This valves are designed to control fluid flow at high pressure
  • With simplicity of design & packless construction, minimal part wear is there which assure trouble free operation & long life of dependable.
  • Actrol is available in various materials and in full range of sizes with flanged ends.
Main Valve Operating Principle

The main valve is normally closed, when pressure is applied to the valve inlet the same pressure is applied to the cover also (upper chamber) the valve remains close. By controlling the pressure in the cover the valve can be made fully Open or closed.

Full Open:

When pressure in the cover chamber is released to a lower pressure zone the line pressure at the valve inlet opens the valve allowing full flow.

Tight Closing:

When the pressure from the valve inlet is applied to the cover chamber, the valve closes drip tight.

Modulating Action:

Actrol valves are hydraulically operated ,by introducing or releasing the liquid from above the diaphragm at controlled rates. A pressure differential is required , either inlet to outlet or inlet to atmosphere, depending on application.
The control valve holds any intermediate position when operating pressures are equal above and below the diaphragm. The control pilot modulates the valve to automatically compensate for line pressure changes.

More Information
Make An Inquiry
Download
  • Technical Specifications
  • Drawing & Material
  • Dimensions & Weight
  • Selection
  • Application
  • Actrol Flow Rate Chart

TECHNICAL SPECIFICATIONS

Size Range 25 mm to 400 mm
Pressure Rating 150# & 300#
Body design Globe style Straight type / Angle type
Flow Under the Seat / Over the Seat
MOC Carbon Steel / Stainless Steel / Bronze
Trims Stainless Steel / Brass / Bronze
Pilot MOC Stainless Steel / Brass / Bronze
Tubing & Fittings Stainless Steel / Brass / Gunmetal
End Connection Flanged end
Facing Raised Face [ RF ] / Flat Face [ FF ]



Dimensions (mm)

SIZE A B WEIGHT (KG)
25MM 152 75 8
40MM 175 110 15
50MM 203 140 18
65MM 241 145 25
80MM 305 170 30
100MM 343 220 60
150MM 432 305 120
200MM 559 400 180
250MM 757 475 370
300MM 864 525 500
350MM 991 570 725
400MM 1060 660 1035

Dimensions & Weight

Selection

  • Valves are sized to provide an appropriate pressure drop for each application. The minimum pressure drop should be 5 psi for inlet to atmosphere and 10 psi from inlet to outlet.
  • Actrol valves are design for use with clean liquid (water, AT F) application for other media is possible, consult factory.
  • Actrol is a single chamber full port engineered basic valve used in nearly all Brightech's model bearing its description. when the main valve is provided with different combination Of pilot & accessories the valve perform a wide range of Automatic Fluid Control making it a specified valve for the Municipal Water Works, Water Distribution System, Fire Protection, Irrigation, Industrial Petroleum & Aviation Fueling System, Loading Terminal Automation of Tankers & Wagons Marine Theme Park, Decorative Fountain etc. for the system application like Remote Control, Pressure Regulation, Solenoid Operation, Rate of Flow Control, Liquid Level Control, Check Function and many more.

Material Specification

SR.NO. Part Name Material
1 Body ASTM A 216 GR WCB /
ASTM A 351 GR CF8 / 8M
2 Cover
3 SEAT RING ASTM A 351 GR. CF8 / 8M
4 QUARD SEAL BUNA N
5 RETAINER '0' RING ASTM A 351 GR. CF8 / 8M
6 WASHER '0' RING SS 304 / 316
7 WASHER DIAPHRAGM SS 304 / 316
8 DIAPHRAGM BUNA N
9 SPRlNG SS 302
10 STEM SS 304 / 316
11 COVER BUSH SS 304 / 316

Application

  • Municipal Water Works
  • Water Distribution System
  • Fire Protection
  • Irrigation
  • Industrial Petroleum & Aviation Fueling System
  • Loading Terminal Automation of Tankers & Wagons
  • Marine Theme Park
  • Decorative Fountain

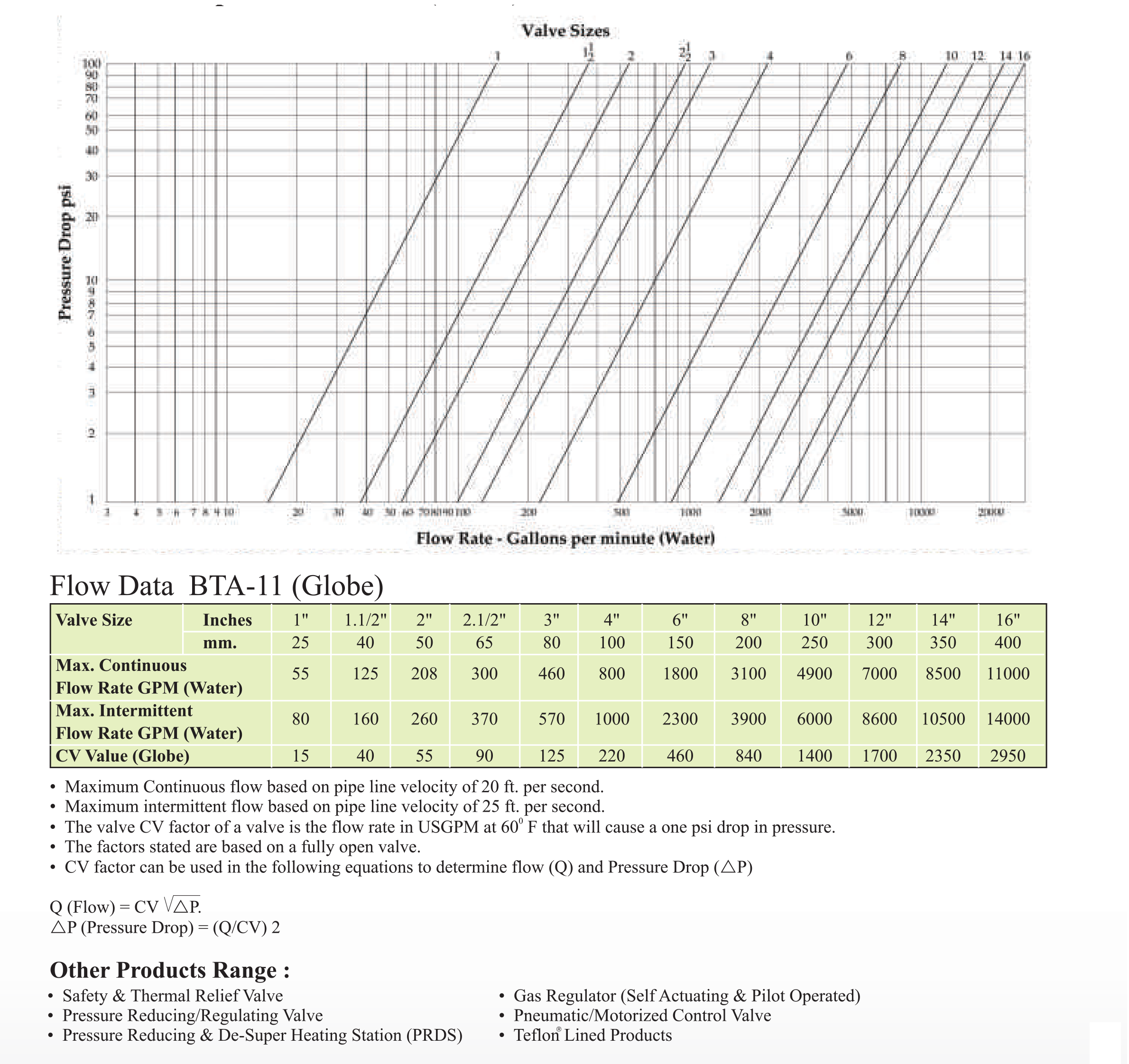

Pressure Drop Chart BTA-11 (Globe)
